[labnetwork] Card Readers for equipment interlocks

[Klomparens, Dylan L. (Fed)]

Hi Tom,

CNST has "tap in/out" system to control physical access to the cleanroom and tool interlocks. We use wall mounted Windows tablets that communicate with our lab management software, NEMO. I've attached a picture and parts list of one of the entryway tablets. I have received many positive comments about this system, the users really enjoy the convenience and speed of logging in. It's been working well for over a year now.

I enjoyed reading Mike Young's response, since we're also working on improved interlocks using the Raspberry Pi. We have a working prototype (read: kludge) for a single tool. The eventual goal will be to polish it to product level quality. What's nice about the Raspberry Pi is that it has the potential to enable us to collect data from sensors, or create a small embedded systems controller for tools. While prototyping, I've successfully programmed a Raspberry Pi to read an ID number from my government badge. I'd be interested in continuing a conversation about this off-list if anyone is interested in collaborating on Raspberry Pi interlocks.

-- Dylan Klomparens

From: labnetwork-bounces at mtl.mit.edu [mailto:labnetwork-bounces at mtl.mit.edu] On Behalf Of Mike Young
Sent: Friday, April 14, 2017 10:10 AM
To: Ferraguto, Thomas <Thomas_Ferraguto at uml.edu>; labnetwork at mtl.mit.edu
Subject: Re: [labnetwork] Card Readers for equipment interlocks


Hi Tom. We use Coral, along with a mix of internet-based interlocks. We also use RFID cleanroom badges. I have made a first-cut implementation of this for one of our resist spinners, using a Raspberry Pi and an RFID reader. It's a bit of a kludge, I think I can do better, but it is functional. I'd extend the implementation to other tools also, if the darn readers weren't so expensive (~$100 each)!

What I have not addressed, is how to do this for equipment which collects run data at disable. I suppose if coral could download the run data from the tool at disable, via SECS or some other interface... That's how the Big Boys do it...

Good luck, and contact me offline if you'd like more of the gory details.

--Mike

On 4/13/2017 1:47 PM, Ferraguto, Thomas wrote:

Colleagues,

Has anyone integrated RFID card readers to their equipment interlocks. I'd like to set up a system where the "Tap in" & "Tap Out" ID the user on opens the interlock on the tool.
Thanks in advance....
Best Regards...
Tom Ferraguto
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://mtl.mit.edu/pipermail/labnetwork/attachments/20170418/aae14112/attachment.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Idle_tablet.jpg
Type: image/jpeg
Size: 359800 bytes
Desc: Idle_tablet.jpg
URL: <https://mtl.mit.edu/pipermail/labnetwork/attachments/20170418/aae14112/attachment.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

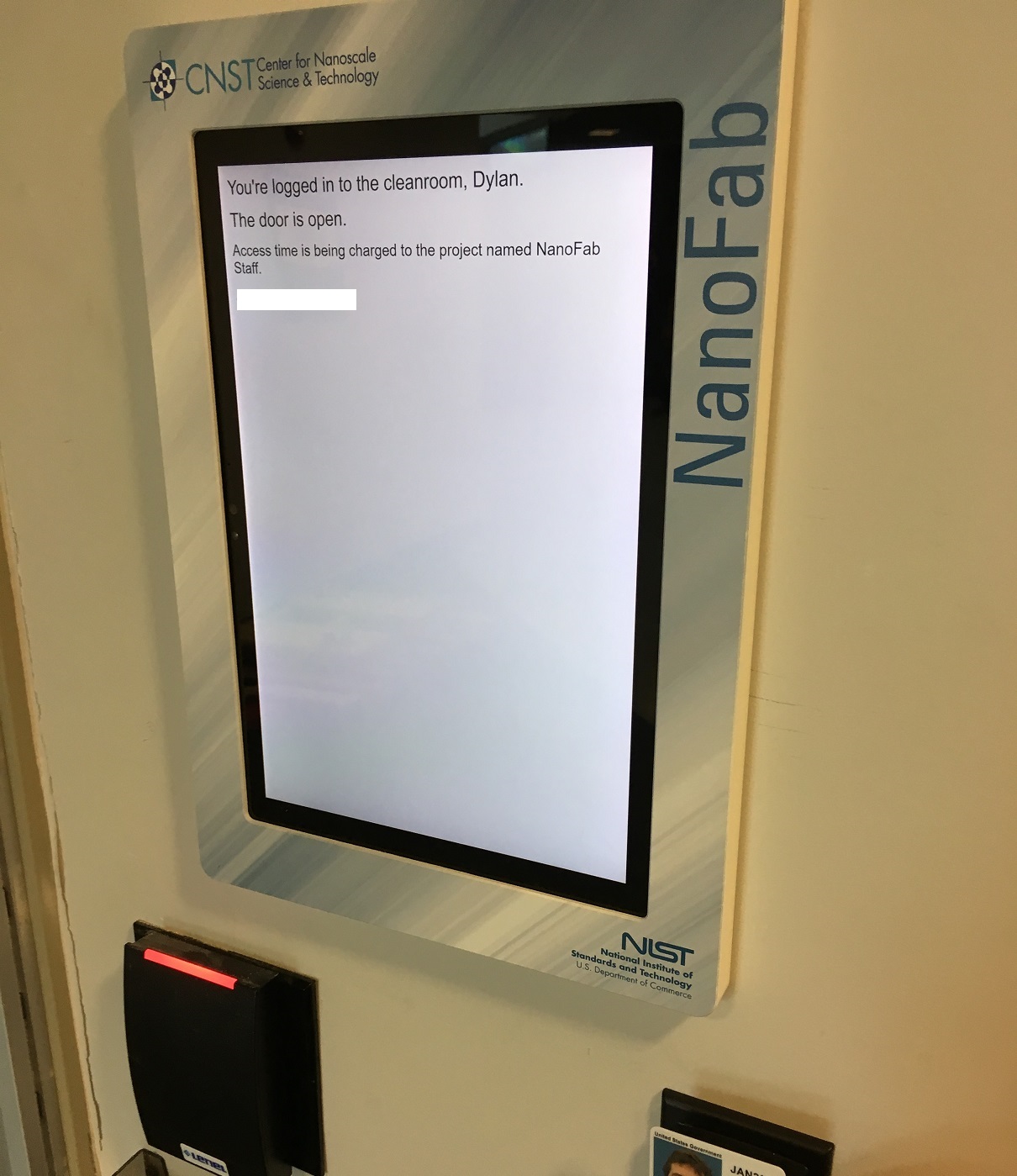

Name: Card_swipe.jpg
Type: image/jpeg
Size: 318967 bytes
Desc: Card_swipe.jpg
URL: <https://mtl.mit.edu/pipermail/labnetwork/attachments/20170418/aae14112/attachment-0001.jpg>
-------------- next part --------------
An embedded and charset-unspecified text was scrubbed...
Name: Parts_list.txt
URL: <https://mtl.mit.edu/pipermail/labnetwork/attachments/20170418/aae14112/attachment.txt>
