Good Morning Everyone,
I trust everyone is well. I have been working on defining lithographic features that are lines separated by trenches both of which are 800nm wide.

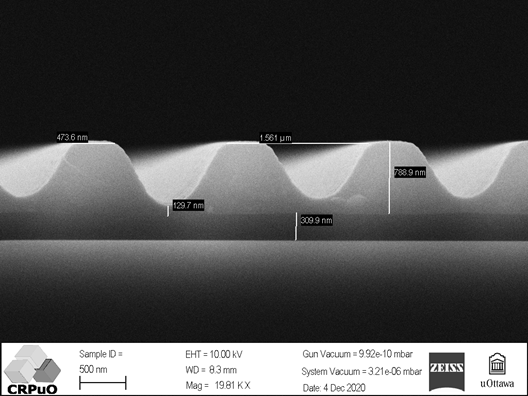

I am getting adequate resolution, i.e, the lines are very close to spec. But the sidewalls slope significantly as can be seen in the attached picture.
My wafer is fabricated as follows:
1. Bare Silicon Wafer
2. HMDS
3. Backside Antireflective Coating (XHiRC-16)
4. SPR-955 - 6000 rpm spin - PR thickness - 800nm
5. Bake 90 Celsius for 90 seconds
6. Exposure - 125 mJ/cm2 in a contact aligner
7. Development 1 minute with ultrasonic
[cid:f7fd4dca-63e7-4b8e-a0d8-a8e0e7b58cd5]
Does anyone know how I can achieve nice vertical sidewalls?
Cheers,
Sa'ad
